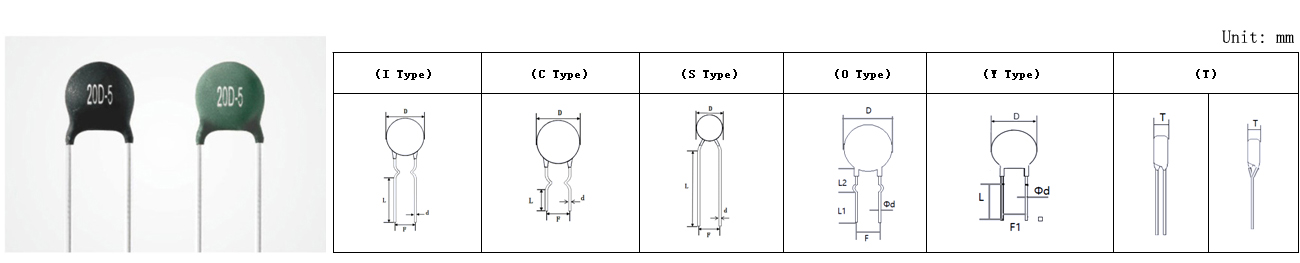

| Part No |
Dmax |
Tmax |
?d ±0.1 |
F1 ±1 |
F2 ±1.5 |
Straight Lead Wire |
Curved Lead wire |
Y Lead wire |
|
|---|---|---|---|---|---|---|---|---|---|
|
L±1 |
L1±0.5 |
L2±2 |
L±1 |
||||||
|
NTC□D-5 |
7 |
5 |
0.55 |
5 |
3 |
2.8-20 |
2.8-20 |
7或4 |
2.8-20 |
| Part No | R25 (Ω) |
Max.steady State current (A) |
Residusl Resistance* (Ω) |
Dissipation Factor* (mv/°c) |
Themal time Constant* (s) |
Maximum allowable capacity value 240V/120V(μF) |
B （K） |
Opearating Temperature (°c) |
Resistatance tolerance |
Packing type Lead wire type |
External dimensions | Materials | Cutting Lead mm |
Datasheet Download |
Part No | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Coating | Lead wire material | Color | |||||||||||||||
| 5D-5 | 5 | 1 | 0.35 | ≈6 | ≈20 | 150/560 | 2700 | -40~ +150 | Black | | 5D-5 | ||||||
| 8D-5 | 8 | 0.7 | 0.77 | ≈6 | ≈20 | 100/390 | 2700 | -40~ +150 | Black | | 8D-5 | ||||||
| 10D-5 | 10 | 0.7 | 0.77 | ≈6 | ≈20 | 68/270 | 2700 | -40~ +150 | Black | | 10D-5 | ||||||
| 20D-5 | 20 | 0.5 | 0.997 | ≈6 | ≈20 | 39/150 | 2800 | -40~ +150 | Black | | 20D-5 | ||||||
| 33D-5 | 33 | 0.5 | 1.88 | ≈6 | ≈20 | 39/150 | 2950 | -40~ +150 | Black | | 33D-5 |
Note: * means the reference value
Resistatance tolerance:M：±20%；L：±15%(customized)
Packing type: B: Bulk packing; C: Cutting lead wire & bulk packing; T: Tape & box packing
Lead wire type: S: Straight lead; I: Kink lead; O: Out-kink lead; Y: Side Bend
Safety certificate : CQC 10001052520 | UL/CUL E319959 | TUV NO.B0016170001
Quality Management Certificate: ISO9001： 2015Certificates | ISO14001： 2015Certificates
| Part No. | R25 （Ω） |
Safety certifications | Part No. | R25 （Ω） |
Safety certifications | ||||
| UL/CUL | CQC | TUV | UL/CUL | CQC | TUV | ||||
| 5D-5 | 5 | √ | √ | 2.5D-13 | 2.5 | √ | √ | √ | |
| 8D-5 | 8 | √ | √ | 3D-13 | 3 | √ | √ | √ | |
| 10D-5 | 10 | √ | √ | 4.7D-13 | 4.7 | √ | √ | √ | |
| 20D-5 | 20 | √ | √ | 5D-13 | 5 | √ | √ | √ | |
| 33D-5 | 33 | √ | √ | 8D-13 | 8 | √ | √ | √ | |
| 5D-7 | 5 | √ | √ | √ | 10D-13 | 10 | √ | √ | √ |
| 8D-7 | 8 | √ | √ | √ | 16D-13 | 16 | √ | √ | √ |
| 10D-7 | 10 | √ | √ | √ | 18D-13 | 18 | √ | √ | √ |
| 12D-7 | 12 | √ | √ | √ | 20D-13 | 20 | √ | √ | √ |
| 16D-7 | 16 | √ | √ | √ | 30D-13 | 30 | √ | √ | √ |
| 20D-7 | 20 | √ | √ | √ | 47D-13 | 40 | √ | √ | √ |
| 22D-7 | 22 | √ | √ | √ | 1.5D-15 | 1.5 | √ | √ | √ |
| 33D-7 | 33 | √ | √ | √ | 2.5D-15 | 2.5 | √ | √ | √ |
| 3D-9 | 3 | √ | √ | √ | 3D-15 | 3 | √ | √ | √ |
| 5D-9 | 5 | √ | √ | √ | 5D-15 | 5 | √ | √ | √ |
| 6D-9 | 6 | √ | √ | √ | 7D-15 | 7 | √ | √ | √ |
| 8D-9 | 8 | √ | √ | √ | 8D-15 | 8 | √ | √ | √ |
| 10D-9 | 10 | √ | √ | √ | 10D-15 | 10 | √ | √ | √ |
| 12D-9 | 12 | √ | √ | √ | 15D-15 | 15 | √ | √ | √ |
| 15D-9 | 15 | √ | √ | √ | 16D-15 | 16 | √ | √ | √ |
| 16D-9 | 16 | √ | √ | √ | 18D-15 | 18 | √ | √ | √ |
| 20D-9 | 20 | √ | √ | √ | 20D-15 | 20 | √ | √ | √ |
| 22D-9 | 22 | √ | √ | √ | 30D-15 | 30 | √ | √ | √ |
| 33D-9 | 33 | √ | √ | √ | 47D-15 | 47 | √ | √ | √ |
| 50D-9 | 50 | √ | √ | √ | 50D-15 | 50 | √ | √ | √ |
| 100D-9 | 100 | √ | √ | √ | 1.3D-20 | 1.3 | √ | √ | √ |
| 120D-9 | 120 | √ | √ | √ | 1.5D-20 | 1.5 | √ | √ | √ |
| 2.5D-11 | 2.5 | √ | √ | √ | 2.5D-20 | 2.5 | √ | √ | √ |
| 3D-11 | 3 | √ | √ | √ | 3D-20 | 3 | √ | √ | √ |
| 5D-11 | 5 | √ | √ | √ | 5D-20 | 5 | √ | √ | √ |
| 8D-11 | 8 | √ | √ | √ | 8D-20 | 8 | √ | √ | √ |
| 10D-11 | 10 | √ | √ | √ | 10D-20 | 10 | √ | √ | √ |
| 12D-11 | 12 | √ | √ | √ | 16D-20 | 16 | √ | √ | √ |
| 15D-11 | 15 | √ | √ | √ | 20D-20 | 20 | √ | √ | √ |
| 16D-11 | 16 | √ | √ | √ | Note:
UL/CUL certificate number:E319959 CQC??? certificate number:10001052520 TUV??? certificate number:NO.B0016170001 |
||||
| 20D-11 | 20 | √ | √ | √ | |||||
| 33D-11 | 33 | √ | √ | √ | |||||
| 47D-11 | 47 | √ | √ | √ | |||||
| 50D-11 | 50 | √ | √ | √ | |||||
