| Part No | R25 (Ω) |
Max.steady State current (A) |
Residusl Resistance* (Ω) |
Dissipation Factor* (mv/°c) |
Themal time Constant* (s) |
Maximum allowable capacity value 240V/120V(μF) |
B （K） |
Opearating Temperature (°c) |
阻值偏差 | Packing 導線長短 |

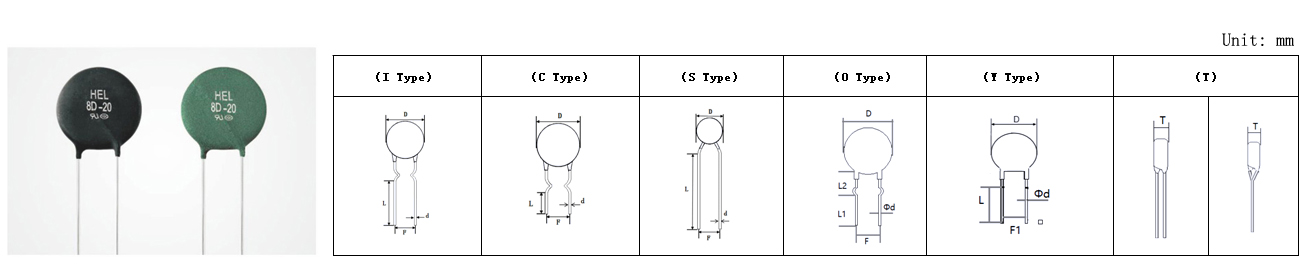

External dimensions | Materials | 切腳 mm |
Datasheet Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wrapper | Down-lead | Color | ||||||||||||||
| 1.3D-20 | 1.3 | 9 | 0.037 | 約24 | 約113 | 820/3300 | 2600 | -40~ +200 | Black | | ||||||
| 1.5D-20 | 1.5 | 9 | 0.037 | 約24 | 約113 | 820/3300 | 2600 | -40~ +200 | Black | | ||||||
| 2.5D-20 | 2.5 | 8 | 0.055 | 約24 | 約113 | 820/3300 | 2700 | -40~ +200 | Black | | ||||||
| 3D-20 | 3 | 8 | 0.055 | 約24 | 約113 | 820/3300 | 2700 | -40~ +200 | Black | | ||||||
| 5D-20 | 5 | 7 | 0.087 | 約24 | 約113 | 820/3300 | 2800 | -40~ +200 | Black | | ||||||
| 8D-20 | 8 | 6 | 0.142 | 約24 | 約113 | 820/3300 | 2950 | -40~ +200 | Black | | ||||||
| 10D-20 | 10 | 6 | 0.162 | 約24 | 約113 | 820/3300 | 2950 | -40~ +200 | Black | | ||||||
| 16D-20 | 16 | 5 | 0.212 | 約24 | 約113 | 820/3300 | 3200 | -40~ +200 | Black | | ||||||
| 20D-20 | 20 | 5 | 0.212 | 約24 | 約113 | 820/3300 | 3200 | -40~ +200 | Black | |
說明：*表示參考值
阻值偏差：M：±20%；L：±15%定制
包裝方式/導線長短： B：散裝；C：切短腳散裝；T：編帶包裝
產品外型： S型：直腳；I型：內彎腳；O型：外彎腳；Y型：側彎腳
安規證書 ： CQC 10001052520 | UL/CUL E319959 | TUV NO.B0016170001
質量管理證書：ISO9001： 2015Certificates | ISO14001： 2015Certificates
| 型號 | R25 （Ω） | 安規認證 | 型號 | R25 （Ω） | 安規認證 | ||||
| UL/CUL | CQC | TUV | UL/CUL | CQC | TUV | ||||
| 5D-5 | 5 | √ | √ | 1.5D-13 | 1.5 | √ | √ | ||
| 8D-5 | 8 | √ | √ | 2.5D-13 | 2.5 | √ | √ | √ | |
| 10D-5 | 10 | √ | √ | 3D-13 | 3 | √ | √ | √ | |
| 20D-5 | 20 | √ | √ | 4.7D-13 | 4.7 | √ | √ | √ | |
| 33D-5 | 33 | √ | √ | 5D-13 | 5 | √ | √ | √ | |
| 3D-7 | 3 | √ | 8D-13 | 8 | √ | √ | √ | ||
| 5D-7 | 5 | √ | √ | √ | 10D-13 | 10 | √ | √ | √ |
| 8D-7 | 8 | √ | √ | √ | 16D-13 | 16 | √ | √ | √ |
| 10D-7 | 10 | √ | √ | √ | 18D-13 | 18 | √ | √ | √ |
| 12D-7 | 12 | √ | √ | √ | 20D-13 | 20 | √ | √ | √ |
| 16D-7 | 16 | √ | √ | √ | 30D-13 | 30 | √ | √ | √ |
| 20D-7 | 20 | √ | √ | √ | 47D-13 | 40 | √ | √ | √ |
| 22D-7 | 22 | √ | √ | √ | 1D-15 | 1 | √ | ||
| 33D-7 | 33 | √ | √ | √ | 1.3D-15 | 1.3 | √ | √ | √ |
| 3D-9 | 3 | √ | √ | √ | 1.5D-15 | 1.5 | √ | √ | √ |
| 2.5D-9 | 2.5 | √ | 2.5D-15 | 2.5 | √ | √ | √ | ||
| 5D-9 | 5 | √ | √ | √ | 3D-15 | 3 | √ | √ | √ |
| 6D-9 | 6 | √ | √ | √ | 3D-15 | 3 | √ | √ | √ |
| 8D-9 | 8 | √ | √ | √ | 7D-15 | 7 | √ | √ | √ |
| 10D-9 | 10 | √ | √ | √ | 8D-15 | 8 | √ | √ | √ |
| 12D-9 | 12 | √ | √ | √ | 10D-15 | 10 | √ | √ | √ |
| 15D-9 | 15 | √ | √ | √ | 15D-15 | 15 | √ | √ | √ |
| 16D-9 | 16 | √ | √ | √ | 16D-15 | 16 | √ | √ | √ |
| 20D-9 | 20 | √ | √ | √ | 18D-15 | 18 | √ | √ | √ |
| 22D-9 | 22 | √ | √ | √ | 20D-15 | 20 | √ | √ | √ |
| 33D-9 | 33 | √ | √ | √ | 30D-15 | 30 | √ | √ | √ |
| 50D-9 | 50 | √ | √ | √ | 47D-15 | 47 | √ | √ | √ |
| 100D-9 | 100 | √ | √ | √ | 50D-15 | 50 | √ | √ | √ |
| 120D-9 | 120 | √ | √ | √ | 1.3D-20 | 1.3 | √ | √ | √ |
| 2.5D-11 | 2.5 | √ | √ | √ | 1.5D-20 | 1.5 | √ | √ | √ |
| 3D-11 | 3 | √ | √ | √ | 2.5D-20 | 2.5 | √ | √ | √ |
| 5D-11 | 5 | √ | √ | √ | 3D-20 | 3 | √ | √ | √ |
| 8D-11 | 8 | √ | √ | √ | 5D-20 | 5 | √ | √ | √ |
| 10D-11 | 10 | √ | √ | √ | 8D-20 | 8 | √ | √ | √ |
| 12D-11 | 12 | √ | √ | √ | 10D-20 | 10 | √ | √ | √ |
| 15D-11 | 15 | √ | √ | √ | 16D-20 | 16 | √ | √ | √ |
| 16D-11 | 16 | √ | √ | √ | 20D-20 | 20 | √ | √ | √ |
| 20D-11 | 20 | √ | √ | √ | 注： UL/CUL 證書號：E319959 CQC??證書號：10001052520 TUV??證書號：NO.B0016170001 | ||||
| 33D-11 | 33 | √ | √ | √ | |||||
| 47D-11 | 47 | √ | √ | √ | |||||
| 50D-11 | 50 | √ | √ | √ | |||||
